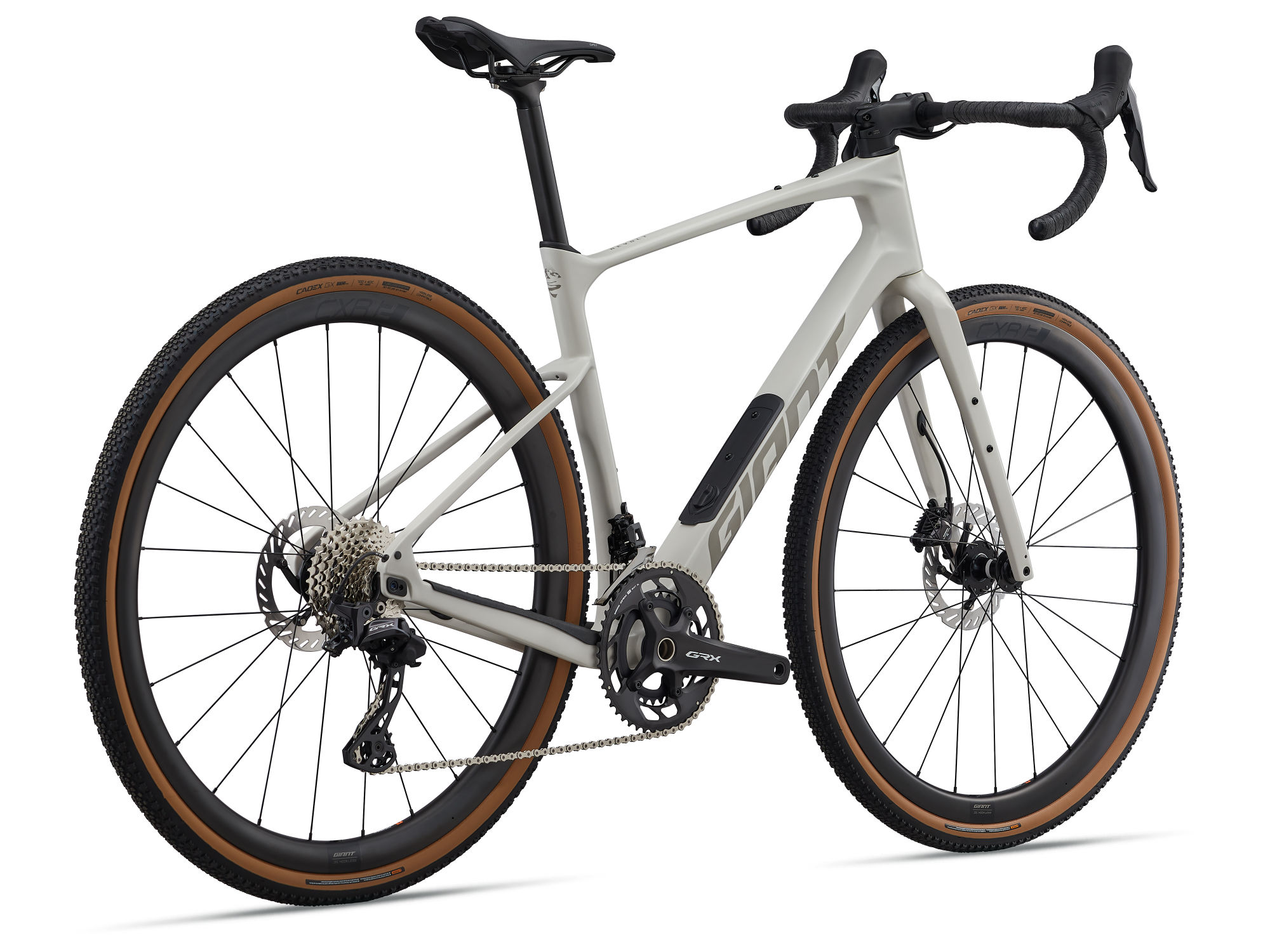

Giant Revolt Advanced 0 2026

Specifications
Sizes XS, S, M, M/L, L, XL
Colors Snow Drift

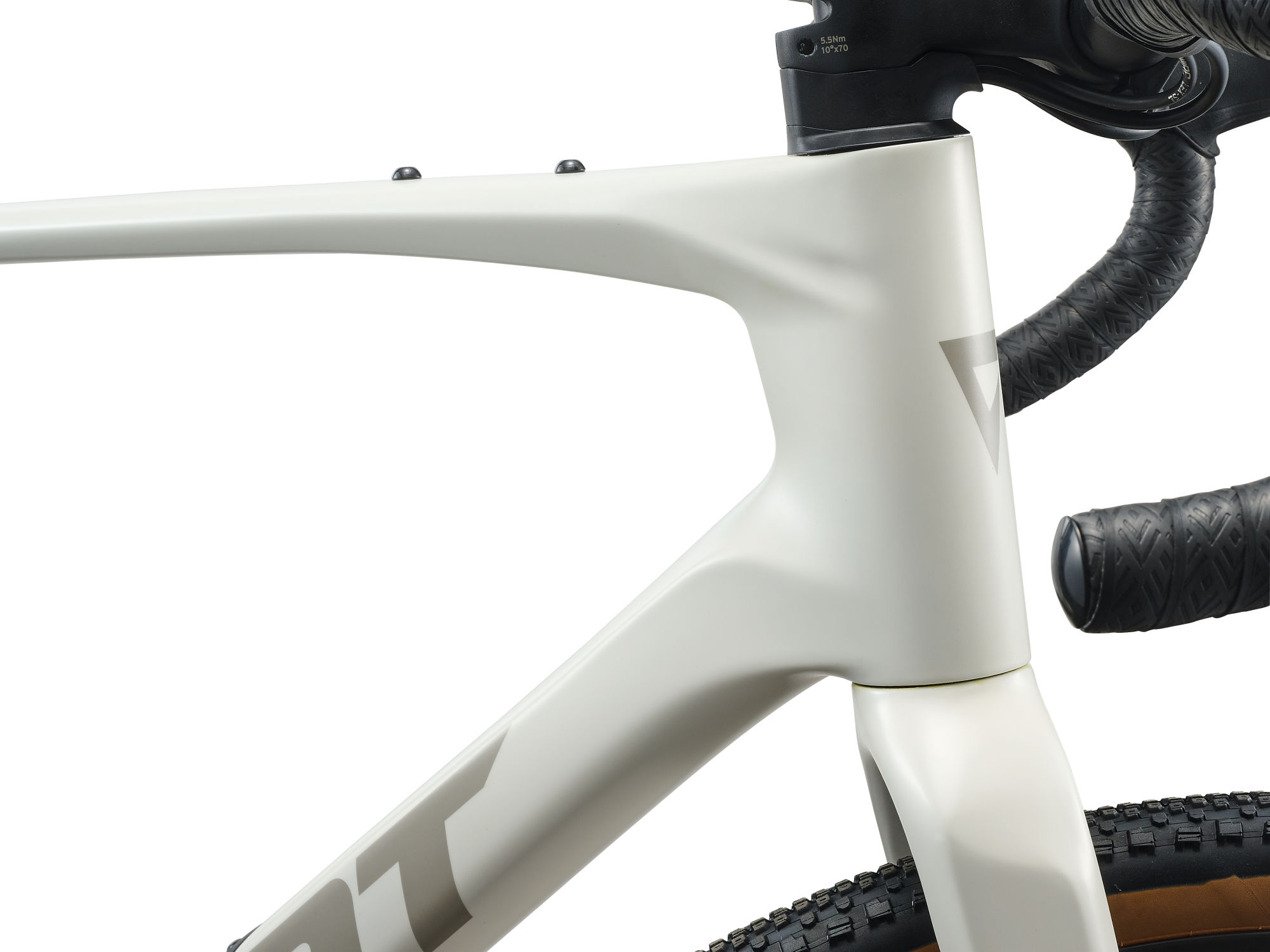

Frame Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

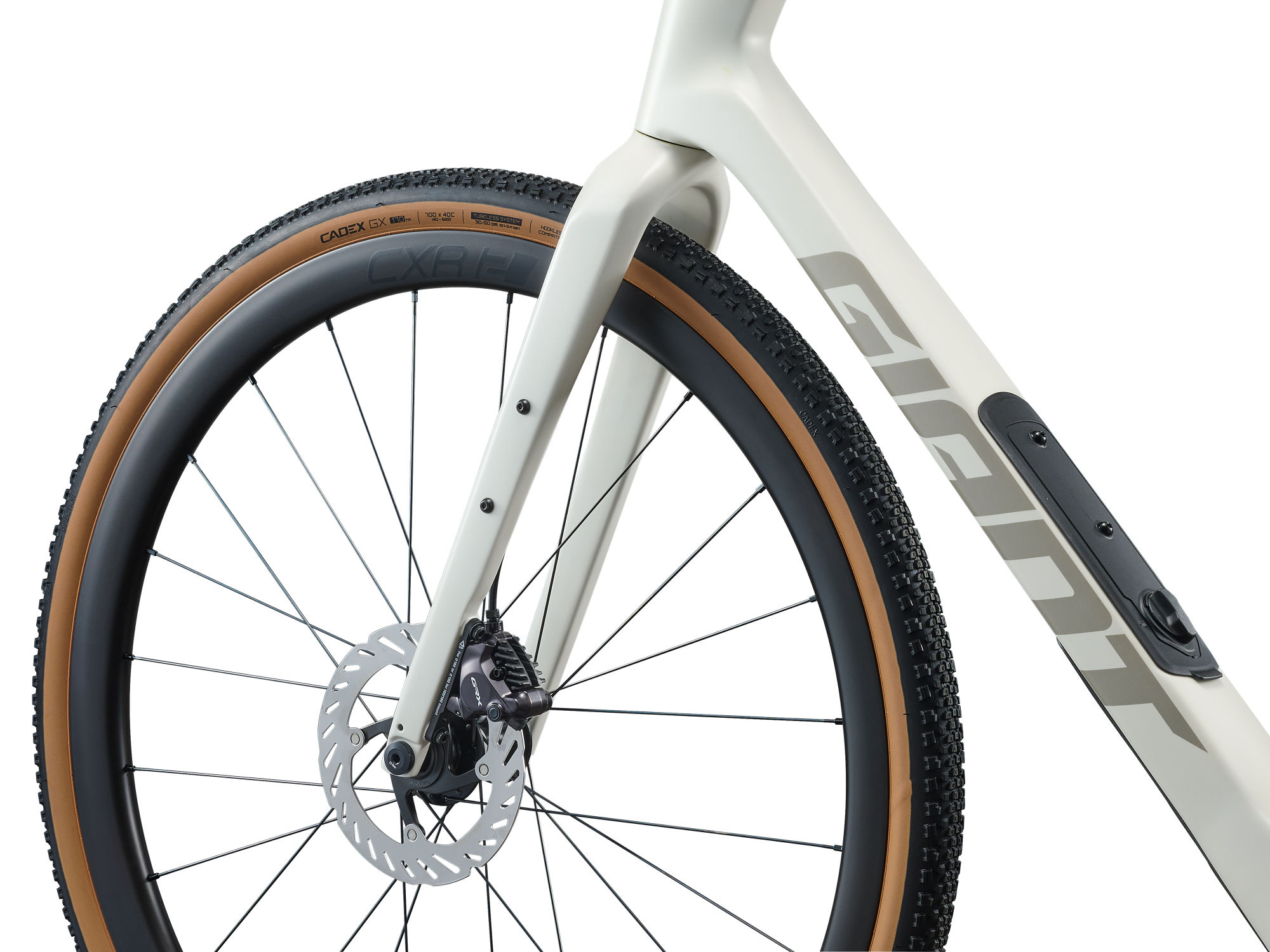

Fork Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost Giant D-Fuse SL, composite, -5/+15mm offset
Saddle Giant Grit
Pedals no pedal [GA, Pan-Eu], platform pedal [GU, GV, GJ] Shifters Shimano GRX RX-820, 2×12
Front DerailleurShimano GRX RX-820
Rear DerailleurShimano GRX RX-820
Brakes Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
Brake LeversShimano GRX RX-820 hydraulic
Cassette Shimano CS-HG710, 12-speed, 11×36
Chain KMC X12L-1

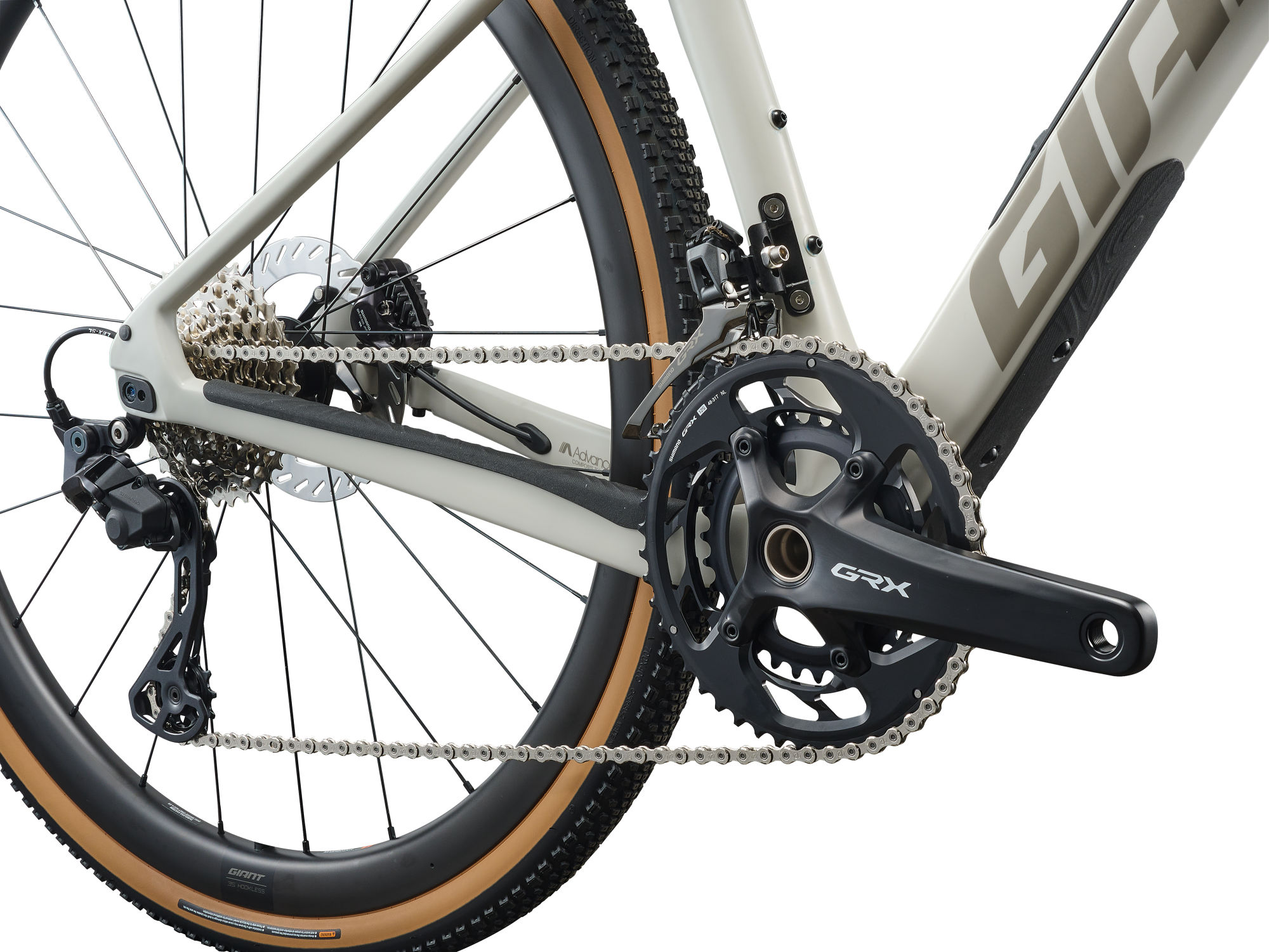

Crankset Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom BracketShimano, press fit
Rims Giant CXR 2 WheelSystem, [F] 35mm, [R] 35mm
Hubs[F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle
Spokes Sapim Sprint
Tires CADEX GX, 700x40c, tubeless
Extras tubeless prepared, 53mm max tire size in “long” flip chip position, 45mm max tire size in “short” flip chip position, in-frame storage bag
Max Tire Clearance53mm
