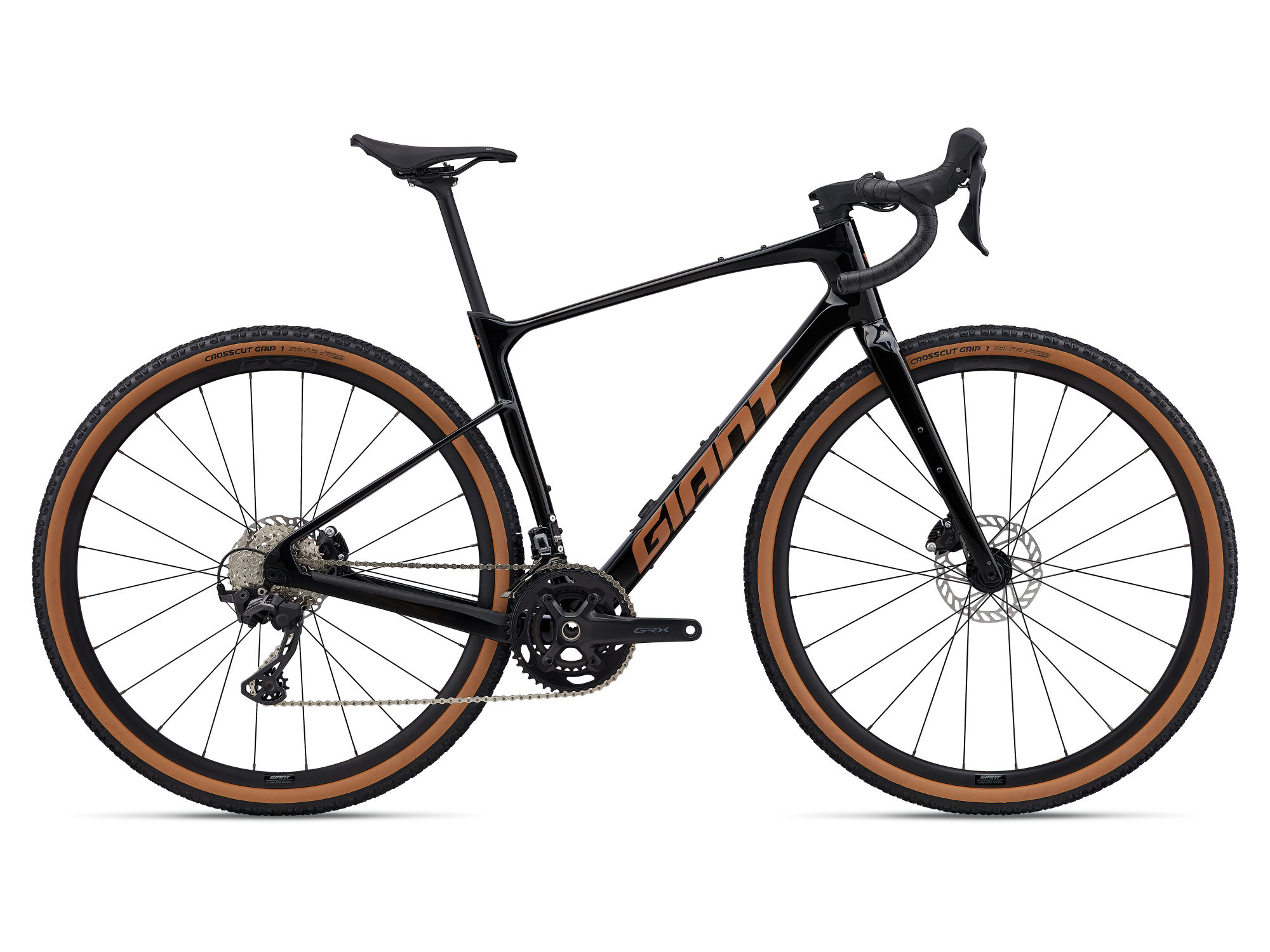

Giant Revolt Advanced 2 Carbon Smoke

Sizes S, M, M/L, L, XL
ColorsCarbon / Solar Fire

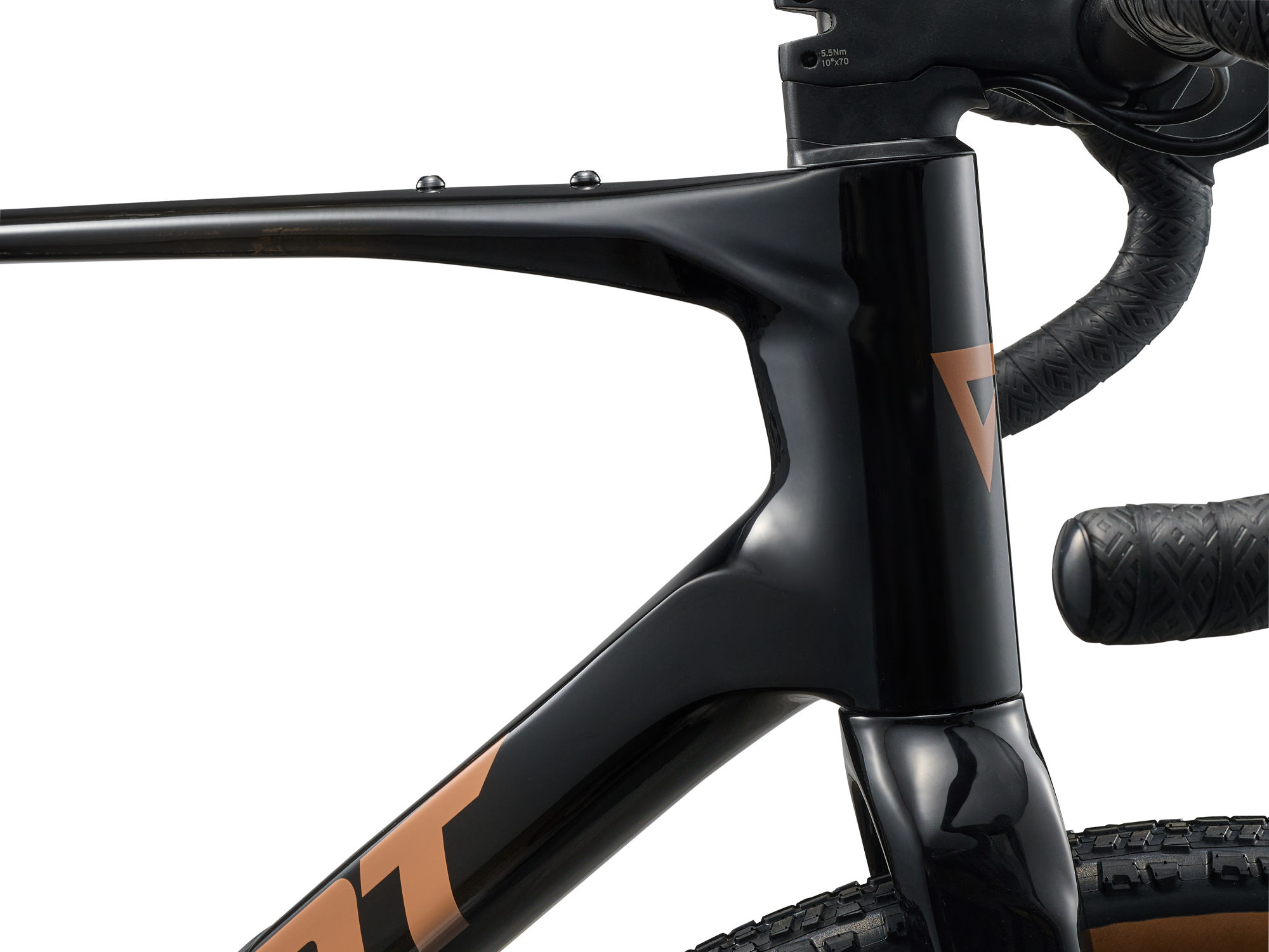

FrameAdvanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

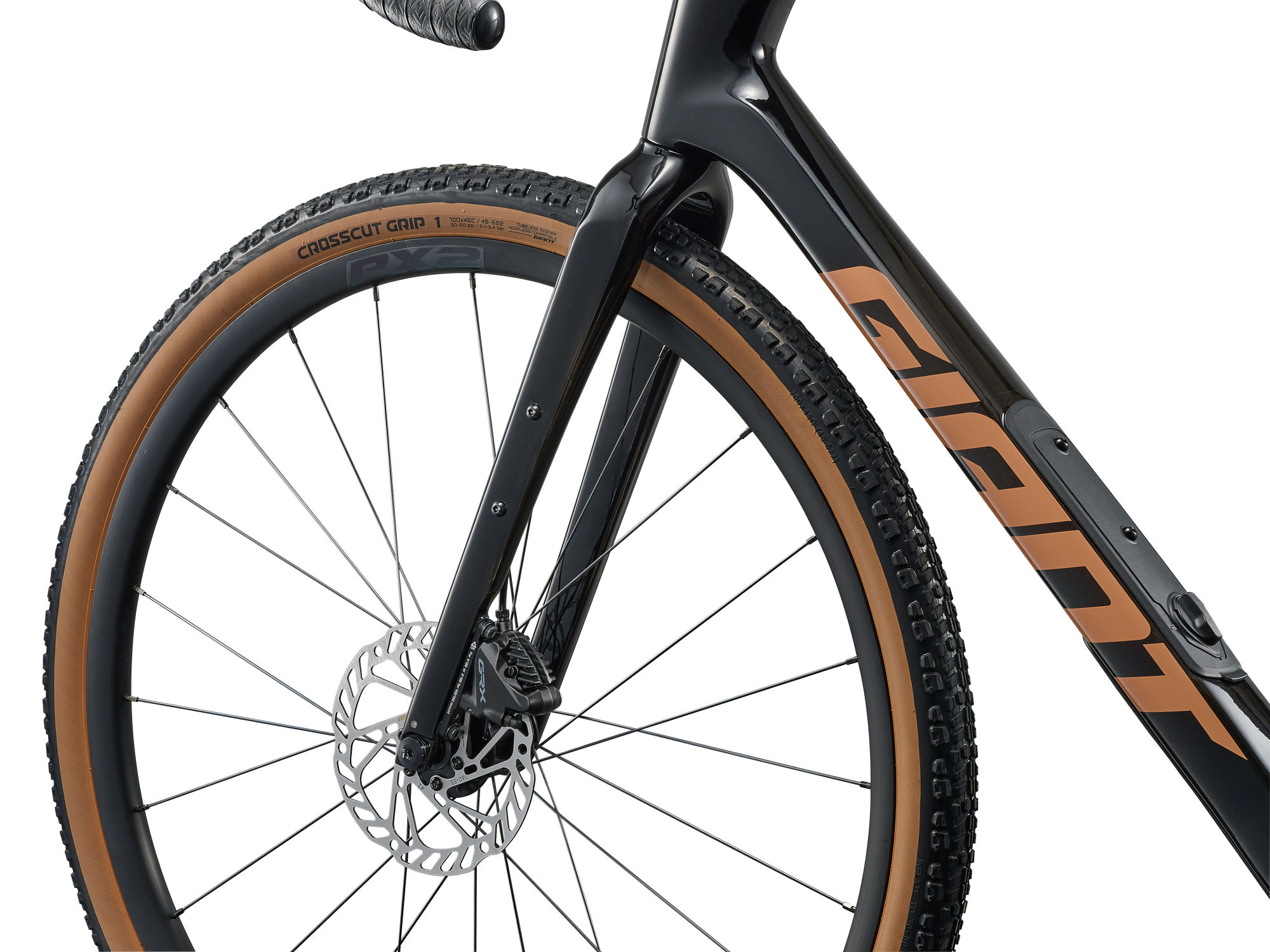

ForkAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
HandlebarGiant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
GripsStratus Lite 3.0
StemGiant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
SeatpostGiant D-Fuse, composite, 14mm offset
SaddleGiant Grit
ShiftersShimano GRX RX-610, 2×12
Front DerailleurShimano GRX RX-820
Rear DerailleurShimano GRX RX-820
BrakesShimano GRX RX-400 HRD, Giant MPH rotors [F]160mm, [R]160mm
Brake LeversShimano GRX RX-610 hydraulic
CassetteShimano CS-HG710, 12-speed, 11×36
ChainKMC X12L-1
CranksetFSA Omega Modular AGX+, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom BracketFSA BB-AL86, press fit
RimsGiant P-X2 Disc wheelset, alloy
HubsGiant alloy, 12mm thru-axle
SpokesSapim
TiresGiant Crosscut Grip TR, 700x40c, tubeless
Extrastubeless prepared, 53mm max tire size in “long” flip chip position, 45mm max tire size in “short” flip chip position, in-frame storage bag
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
